Solar solution

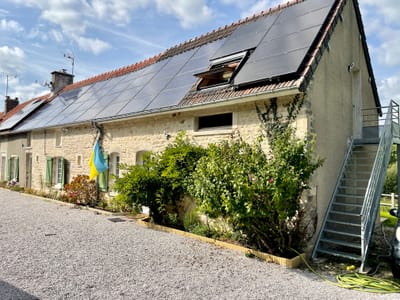

My solar installation In Normandie. in 2013 i decide to install solar panel and at that time French government do not allow to make storage system and so, i install 9 Kw of solar panels and sell all the production up to date. In 2021 As now french law allow to sell and to make auto consumption, I install 6 kw solar panels, with enphase system and 16 Kw of lithium batteries. the over all price is around 50 000 euros. 33 000 euros accounting depreciation has been return , for 17 000 euros is in process to be return as the cost of energy will increase drastically in the near future. I will describe further with equipment i use for it and i configure them
For Photovoltaic production to sell to the government Grid I use the following equipment
Solar log 50 for monitoring
CENTROSOLAR-S-Class-Intégration-v4.2
ABB Trio 8.5 kW
Gateway SolarLog 50

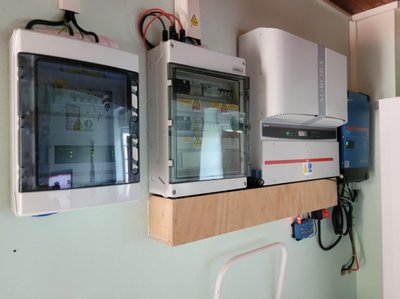

For Photovoltaic self consumption I use the following equipment
Solar panels Eurener 320 Wc for 6 Kw
Enphase Micro-onduleurs IQ 7
Enphase Envoy-S Metered
Victron MultiPlus-II 48 | 5000 | 70-50
Victron cerbo GX
energy_meter_et112_manual MK3 interface
Software VE. CONFIG from Victron
Pylontech batteries 16 kw
ESS_design_and_installation
Automatic source switch
Timer Theben

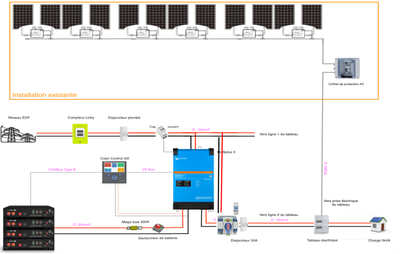

How it`s works wiith all component above
Enphase system: This is a micro-inverter system used for converting DC power generated by solar panels into AC power. Each panel has its own micro-inverter, which allows for individual monitoring and optimization of energy production.
The Enphase Envoy Metered Station is a monitoring device used in Enphase energy systems. It provides real-time information about energy production, consumption, and battery status. It is designed to be used in conjunction with Enphase micro-inverters and can monitor up to 600 micro-inverters. The Envoy Metered Station provides detailed energy usage data for each individual panel, allowing for precise monitoring and optimization of energy production.
The Envoy Metered Station also allows for remote monitoring and control of the system through the Enphase Enlighten monitoring software. This software provides real-time monitoring and analysis of energy production, consumption, and battery status. It also allows for the creation of custom alerts and notifications, enabling users to stay informed about their system's performance.
Overall, the Enphase Envoy Metered Station is an essential component in an Enphase energy system, providing precise monitoring and control of energy production and consumption.
Victron Multiplus 2: This is an inverter/charger that can be used in a solar power system to convert DC power produced by solar panels into usable AC power. It can also charge energy storage batteries when there is excess power produced.
GX Cerbero: This is a monitoring and control device used in Victron energy systems. It provides real-time information about energy production, consumption, and battery status. It also allows for remote monitoring and control of the system.
ET 112: The Energy Meters are used in systems with a GX device. To measure the output of a PV inverter, Or as a Grid Meter in an ESS installation
Pylontech batteries: These are lithium-ion batteries used for energy storage in a solar power system. They are designed for high performance, safety, and long lifespan
Source commutator: This is a transfer switch used to switch between the power sources in a solar power system. It allows the system to automatically switch from solar power to grid power if the solar power is insufficient or if there is a power outage.
MK3: This is a monitoring device used to track the performance of solar panels in a solar power system. It measures the output of each panel and can identify any issues that may arise.
Together, these components can form a complete solar power system that can provide reliable and efficient energy production and storage. The Enphase micro-inverters optimize energy production, while the Victron Multiplus 2 provides reliable conversion of DC power to AC power and charging of energy storage batteries. The GX Serbero provides real-time monitoring and control of the system, while the ET 112 ensures safe and efficient charging of the batteries. The Pylontech batteries provide high-performance energy storage, and the source commutator ensures a reliable and seamless switch between power sources. Finally, the MK3 provides monitoring of the solar panels to ensure they are performing optimally.
Ev charger for Tesla and kia EV6 7 KW single phase
Power supply your home with your car (KIA EV^6) and with you batteries pylontech
To power supply your home in case of gird failure if you have batteries you have a specialset up to do with your victron or with your car if you have a Kia with V2L (not available for Tesla till now), you can power supply your home maximum 3 Kw . The pictures beloow show you that( it`s in commssioning phase) for explanation do not hesitate to contact me
